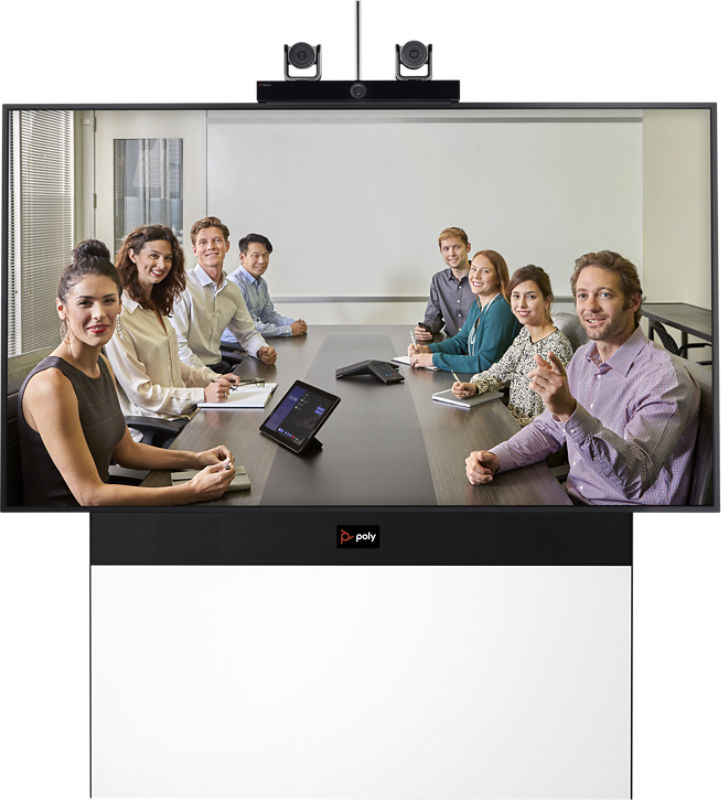

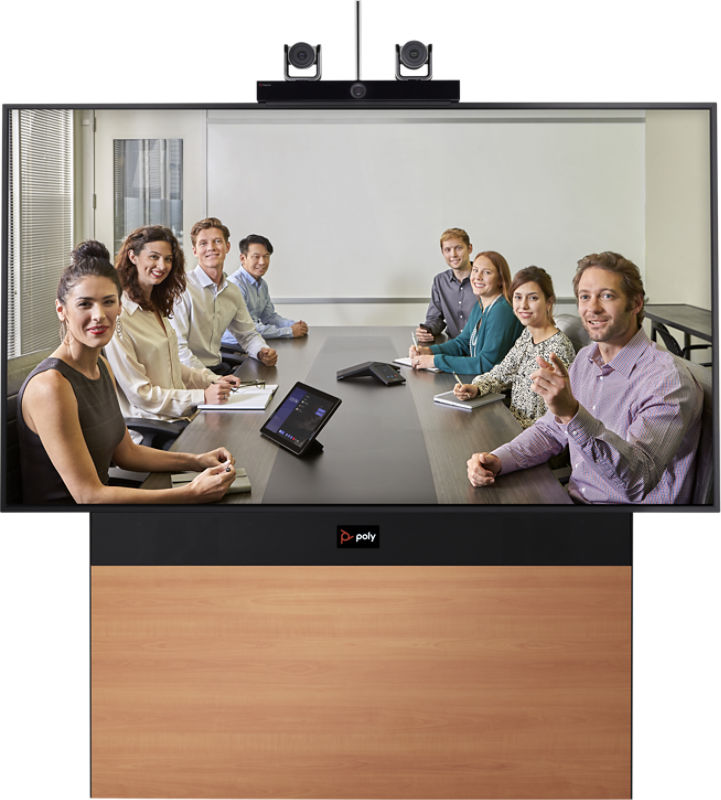

Medialign Complete Video Conferencing System
- Streamline collaboration with a single system
- See and be seen with rich, high-definition clarity
- Enjoy better sound quality in any size room
- Capture ideas on the fly and save them digitally
Medialign
Overview
Mission Complete
Bring far flung teams together with an all-in-one video conferencing solution. It provides every piece you need – from mics and monitors to smart-tracking EagleEye Director II cameras to a powerful codec – to deliver high-end conferencing to medium and large sized rooms. Easily share ideas, plans and demos in rich, UltraHD video and high-fidelity audio. And use digital whiteboarding or live annotation to get more done.

Benefits
- Streamline Collaboration
- See and Be Seen
- Enjoy better Sound Quality
- Capture and Save Ideas Easily
Working together has never been easier. Give your teams a simple, streamlined experience that’s easy to use and always consistent. When they know how to launch and manage a conference, people can go into meetings with confidence and focus on their ideas—not the technology.
It’s easier to work together when you can see each other clearly. With Medialign, you get ultra-high-definition 4k content and monitors—so no one misses a thing. Visuals are crisp and clear, even on highly-detailed applications.
Noisy workspace? No problem. Block out distractions in any size room with Poly’s legendary audio features like Poly NoiseBlockAI and Acoustic Fence. Count on sharper sound quality and voice clarity, even in medium and large spaces.
Keep track of meeting results—no paper trail required. Take notes using the digital whiteboarding capabilities. Or mark up documents on the fly with optional annotation for fast collaboration. Plus, you can easily save everything to share with team members and refer to later.
We work everywhere that you do
Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.
Poly works seamlessly with whichever cloud video service you choose
Poly demonstrated the new G7500 4K video and wireless content sharing device, which is targeted for use in medium and large rooms. Two things struck us about the G7500: first, the device itself is very light…Second, the unit was demonstrated in a direct call to a G7500 in New York City, with a view of Manhattan outside of the window. The 4K “Ultra HD” detail was stunning as we watched birds flying by and slow river traffic.
Medialign
Specifications
-
General
- Power supply: 110 V–240 V AC, 6 A max
- Operating temperature: 0–40 °C
- Operating humidity: 15%–80% non-condensing
- Enclosure: Steel frame with steel and MDF covers
-
Dimensions
-
Medialign 65
- (H) 1952 x (W) 1459 x (D) 161
-
Medialign 65D
- (H) 1952 x (W) 2928 x (D) 161
-
Medialign 75
- (H) 2222 x (W) 1735 x (D) 195
-
Medialign 75D
- (H) 2222 x (W) 3470 x (D) 195
-
Medialign 86
- (H) 2300 x (W) 1896 x (D) 215
-
Medialign 86D
- (H) 2300 x (W) 3863 x (D) 215
-
-
Product weight
-
Medialign 65
- 124.9 kg (275.4 lbs)
-
Medialign 65D
- 223.8 kg (493.4 lbs)
-
Medialign 75
- 158.7 kg (349.9 lbs)
-
Medialign 75D
- 294.9 kg (650.2 lbs)
-
Medialign 86
- 154.7 kg (341.0 lbs)
-
Medialign 86D
- 289.7 kg (638.7 lbs)
-
-
Regulatory compliance
- UL/cUL, CE
-
Power inlet
- 110 V–240 V AC, 50/60 Hz breaker protected to 10 A
-
UHD LED Displays
- Display type: Edge-lit LED display
- Maximum resolution: 3840 x 2160
-
Contrast ratio (typical):
- 65"–1000:1
- 75"–1200:1
- 86"–1200:1
-
Diagonal Screen Size:
- 65" (1651 mm)
- 75" (1905 mm)
- 86" (2184 mm)
- Viewing angle: +/- 178 degrees
-
Brightness (typical):
- 65"–450 cd/m²
- 75"–350 cd/m²
- 86"–450 cd/m²
-
Loudspeakers
- Frequency response: 90–20 kHz
- THD at nominal output: < 1%–Woofer amplifier power: 17.5 W, 1% THD; 25 W
-
EagleEye Director II
-
Connections
- 1x Mini-HDCI out to video system
- 2x USB 2.0 - 1x 3.5 mm stereo line-in
- 1x HDMI in
- 1x HDMI out
-
-
RealPresence Group 500 Codec
-
Video input
- 1x HDCI
- 1x HDMI 1.31 x VGA
- Video out: 2x HDMI 1.3
-
People video resolution 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 Kbps
- QSIF (176 x 120), QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
-
Content video resolution (Input)
- HD (1920 x 1080i), HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p), XGA (1024 x 768)
- SVGA (800 x 600)
-
Content video resolution (Output)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- VGA (640 x 480)
-
-
Poly G7500 Codec
- Video standards and protocols
- H.264 AVC, H.264 High Profile, H.264
- SVC, H.265, RTV
- H.239
- H.264 video error concealment
-
Video Input
- 1x HDCI
- 1x HDMI
- 1x USB1
-
Video Out
- 2x HDMI
- Touch Display Compatible
-
People Video Reolution
- 4K, 30 fps (TX and RX) from 2048 Kbps
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 Kbps
- QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
-
Content Video Resolution
-
Input
- UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
-
Output
- UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
-
Content frame rate
- 5–60 fps (up to 4K resolution at 15 fps in call)
-
-
Content Sharing
- Polycom Content App support
- Apple AirPlay
- Miracast
- 1x HDMI input
-
AUDIO INPUT
- Up to three IP Microphone Arrays
- Up to four Clink2 Microphones (using Poly Microphone IP Adapter)
- 1x HDMI
- 1x 3.5 mm stereo line-in
-
Audio Input
- 1x HDMI
- 1x 3.5 mm stereo line-out
-
Other Interfaces
- 3x USB 3.0
- 1x USB-C1
- 1x RS-232, 8-pin mini-DIN
- Bluetooth 5.0
- WiFi 802.11 a/b/g/n/ac (MIMO)
- Multichannel Concurrency
-
Audio Standards and Protocols
- 22 kHz bandwidth with Polycom Siren 22 technology, G.719 (M- Mode)
- 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
-
Network
- IPv4 support
- 1x 10/100/1G Ethernet
- Auto-MDIX
- 3x 10/100/1G LLN supporting POE+/PSE
- H.323 and/or SIP up to 6 Mbps
- Polycom Lost Packet Recovery (LPR technology
- Dynamic Bandwidth Allocation
- Reconfigurable MTU size
- RS232 with REST and CLI API support
- Web Proxy support—Basic, Digest and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
-
Security
- Media Encryption (H.323, SIP): AES-128, AES-256
- H.235.6 support
- Authenticated access to admin menus, web interface and APIs
-
PKI/Certificate Management:
- TLS 1.2, 1.1, 1.0
- Self-signed and CA-signed certificate support
- CRL and OCSP-based certificate revocation checking
- Local account password policy configuration
- Security profiles
- Local account and login port lockout
- Secure defaults
- Remote logging with support for TLS
- Active Directory external authentication
- Electrical
- Auto sensing power supply
-
Typical operating voltage/power:
- 60 VA @ 120 V @ 50 Hz @ .49 PF
- 60 VA @ 120 V @ 60 Hz @ .49 PF
- 74 VA @ 200 V @ 50 Hz @ .40 PF
- 73 VA @ 200 V @ 60 Hz @ .40 PF
- 87 VA @ 260 V @ 50 Hz @ .34 PF
- 86 VA @ 260 V @ 60 Hz @ .36 PF
-
Poly Constant Clarity Techology
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Poly NoiseBlock technology
- Poly Acoustic Fence
- Live music mode
- Instant adaptation echo cancellation
- Audio error concealment - Poly Siren Lost Packet Recovery (LPR) technology
- Poly StereoSurround technology
-
Other Supported Standards
- H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460
- BFCP (RFC 4582)
- TIP
- Network
- IPv4 and IPv6 support
- 1x 10/100/1G Ethernet
- Auto-MDIX
- H.323 and/or SIP up to 6 Mbps
- Poly Siren Lost Packet Recovery (LPR) technology
-
