poly Studio X70 All-in-one video bar for large rooms

  • Dual 4K lenses
  • Two-way stereo speakers, aluminum cone tweeters, and advanced bass ports
  • Poly DirectorAI smart camera technology
  • NoiseBlockAI noise reduction technology
  • Seamless native experience on leading cloud video services
Starting At$6,999.95
Buy Now

Overview

The World in Your Conference Room

4K Video Bar for Smarter Hybrid Meetings

Ready for the best damn meeting experience available? The Poly Studio X70 video bar combines stunning design with razor-sharp 4K video and boardroom-filling stereo that brings your large meeting rooms to life. Its all-in-one construction means you can trash all those annoying cables and stop bothering your IT people for help. And with its AI-driven video and audio experiences, the Poly Studio X70 turns any large-room video call into a hassle-free delight.

Crystal clear video

Lifelike definition with dual lenses and 4K sensors

The Poly Studio X70 transitions seamlessly between wide-angle and narrow lenses, showing everyone in your medium and large meeting spaces in sharp detail. Ready for your close-up?

New Intelligent Camera Technology

Drive meeting equality for hybrid work through Poly DirectorAI

Poly's artistically engineered meeting experience and AI come together to create Poly DirectorAI smart camera technology. Choose between group framing, people framing, or speaker framing to create the most equitable experience for your hybrid meetings.

The tools you need

Top cloud video apps are built right in

Poly Studio X70 comes with native applications for key cloud video providers like Zoom. Native apps make it easier for users, with a consistent and familiar interface everywhere. We combine Poly MeetingAI technology with partner platform features for a next level experience.

Pro-quality audio

Custom microphones and stereo speakers deliver rich audio

Enjoy the kind of crystal-clear, boardroom-filling audio you’d expect from Poly, thanks to two-way stereo speakers and advanced bass ports. And the Poly Studio X70 delivers advanced 2nd-order gradient microphone array, which means a next-level audio experience, no matter which side of the call you’re on.

Poly Lens

Intelligent Insights, Scalable Management

Poly Lens software gives IT teams visibility and control over voice, video, and headset devices. Deploy, configure, update, and get valuable insights from one endpoint or thousands using one scalable platform. Poly Lens makes it simple: no heavy IT lifting required.

We work everywhere that you do

Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.

Poly works seamlessly with whichever cloud video service you choose.

Easy Digital Signage In Your Video Meeting Spaces

Poly video conferencing solutions can now deliver digital signage content from Appspace and Raydiant between meetings. Using Poly Lens cloud management makes deployment a breeze.

Awards

Features

Features

Specifications

  • Package includes
    • Poly Studio X70
    • Power Supply
    • 2x HDMI cable
    • Ethernet Cable
    • Wall mount
    • H.264 AVC, H.264 High Profile, H.265
    • 1x HDMI
    • 2x HDMI
    • Touch display compatible
    • 4K, 30 fps (TX and RX) from 2048 Kbps
    • 1080p, 30 fps from 1024 Kbps
    • 720p, 30 fps from 512 Kbps
    • Input
      • UHD (3840 x 2160)
      • FHD (1920 x 1080p)
      • WSXGA+ (1680 x 1050)
      • UXGA (1600 x 1200)
      • SXGA (1280 x 1024)
      • WXGA (1280 x 768)
      • HD (1280 x 720p)
      • XGA (1024 x 768)
      • SVGA (800 x 600)
    • Output
      • UHD (3840 x 2160)
      • WUXGA (1920 x 1200)
      • HD (1920 x 1080)
      • WSXGA+ (1680 x 1050)
      • SXGA+ (1400 x 1050)
      • SXGA (1280 x 1024)
      • HD (1280 x 720)
      • XGA (1024 x 768)
    • Content frame rate 5–60 fps (up to 4K resolution at 15 fps in call)
    • Room participant counting detection
    • Air quality sensor*
      • CO2 and Volatile Organic Compounds (VOC)
    • Poly content app
    • Apple Airplay
    • Miracast
    • HDMI input
    • Whiteboarding
    • 2 lenses
      • 120-degree HFOV, 70-degree HFOV
      • 140-degree DFOV, 78-degree DFOV
    • 2x 20 Megapixel sensors
    • 7.3x digital zoom
    • UHD 2160p (4K) capture resolution
    • Additional cameras can be added via USB
    • Automatic meeting experience powered by Poly DirectorAI including group framing, people framing (preview features), and speaker framing
    • 1x 3.5 mm
    • 2x MEMS microphones, plus 2x 2nd order microphones
    • Microphone pickup range up to 25 ft
    • Optional expansion microphone available (p/n 2200-69631-001)
    • 1x 3.5mm
    • Two-way Stereo Speakers
    • Mid speakers
      • Power Handling (RMS) 20 Watts
      • Power Handling (MAX) 30 Watts
      • Sensitivity 83 dB
    • Tweeter speakers
      • Power Handling (RMS) 15 Watts
      • Power Handling (MAX) 20 Watts
      • Sensitivity 89 dB
    • Custom Tuned Bass Ports for rich sound
    • 2x USB-A (3.0)*
      • *Used for connected peripherals
    • 1x USB-C*
      • *Used for connected PC
    • Bluetooth® 5.0
      • *TAA, JITC and no radio versions available
    • 2x RJ45*
      • *Designated for future use
    • WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
      • *TAA, JITC and no radio versions available
    • 22 kHz bandwidth with Polycom Siren 22 technology
    • 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
    • 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
    • 7 kHz bandwidth with G.722, G.722.1
    • 3.4 kHz bandwidth with G.711, G.728, G.729A
    • • IPv4
    • IPv6
    • 2x 10/100/1G Ethernet (RJ45)
    • Auto-MDIX
    • H.323 and/or SIP up to 6 Mbps running Poly Video App
    • Polycom Lost Packet Recovery (LPR) technology
    • Dynamic bandwidth allocation
    • Reconfigurable MTU size
    • Web proxy support
      • Basic
      • Digest
      • NTLM
    • Media encryption (H.323, SIP)
      • AES-128
      • AES-256
    • H.235.6 support
    • Authenticated access to admin menus, web interface, and API
    • Local account password policy configuration
    • Security profiles
    • Local account and login port lockout
    • Secure defaults
    • Remote logging with support for TLS
    • Active directory external authentication
    • Electronic privacy shutter
    • VESA mount kit
    • Stand

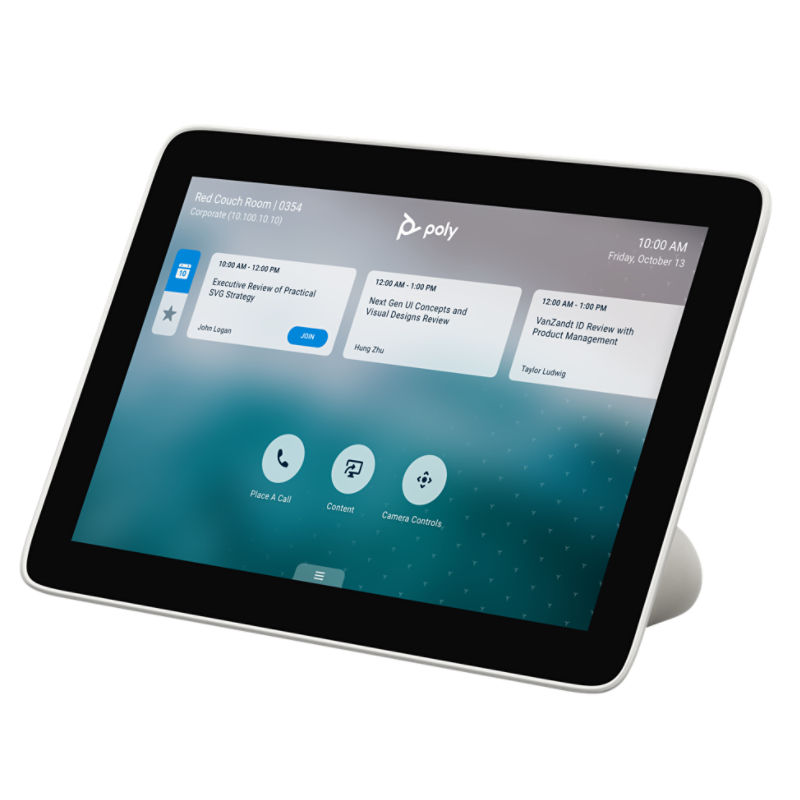

    • Poly TC8
    • Poly Bluetooth remote control
    • Poly Trio
    • Studio Expansion Microphone
    • TAA, JITC and no radio versions available
    • All cloud service providers through Poly Video App Mode
    • Support for native 3rd party applications includes:
      • Zoom
      • Microsoft Teams
      • GoToRoom
      • RingCentral
      • StarLeaf
      • DialPad
    • Auto sensing power supply
    • Typical operating voltage/power
      • 37 VA @ 120 V @ 60 Hz
      • 37 VA @ 230 V @ 50/60 Hz
    • Typical BTU/h
      • 65
    • Appspace
    • Operating temperature
      • - 0 to 40 °C
    • Operating humidity (non-condensing)
      • 15 to 80%
    • Non-operating temperature
      • -40 to 70 °C
    • Non-operating humidity (non-condensing)
      • 5 to 95%
    • Maximum altitude
      • 16,000 ft
    • 840.18 mm / 33.1 in (W) x 135.38 mm / 5.3 in (H) x 117.33 mm /4.6 in (D)
    • 7.05 lbs/3.2 kg
    • Cloud: Poly Lens service
    • One-year return to factory parts and labor
    • Poly Studio X70 (P/N 7200-87290-001)
    • Poly Studio X70 with TC8 (P/N 7200-87300-001)
