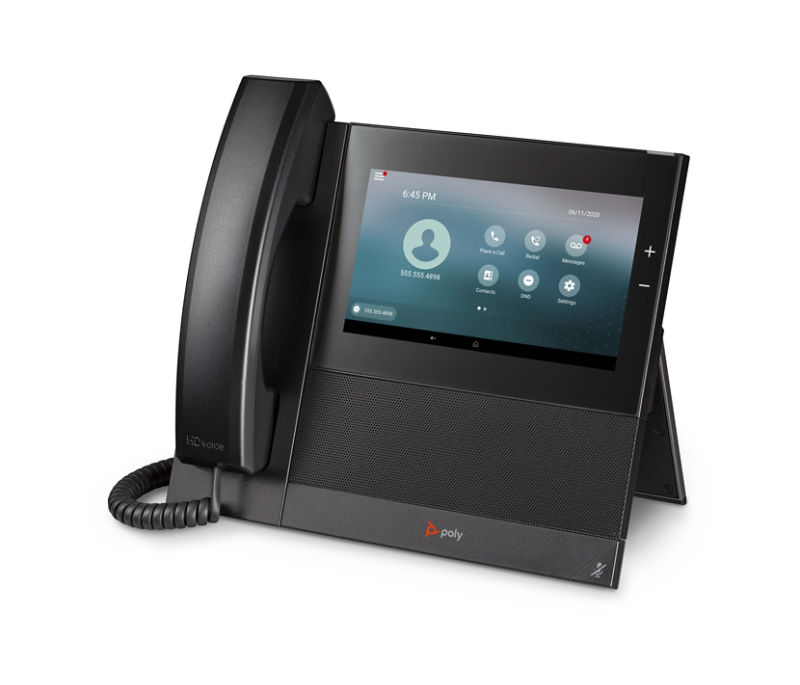

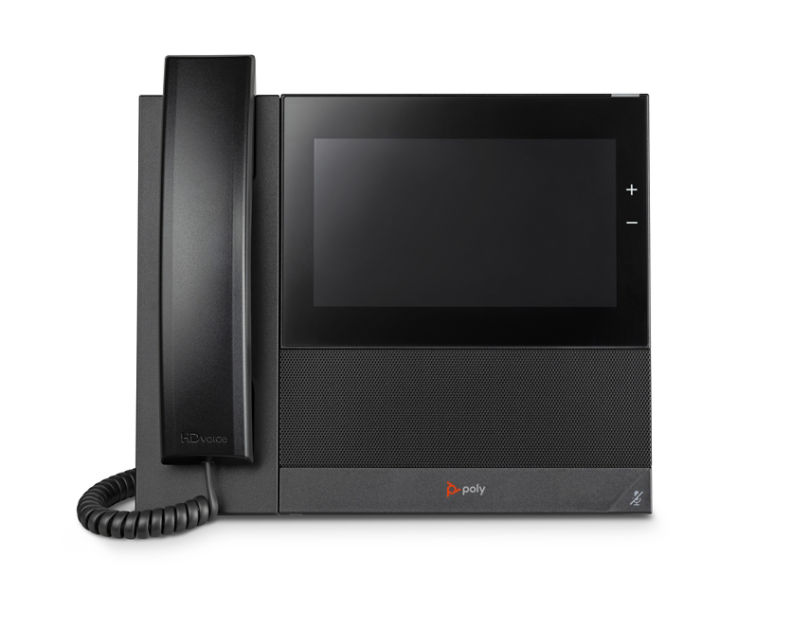

CCX 600 Performance business media desk phone with large color touchscreen

  • Headset or handset—your choice with large 7” color touchscreen
  • Hear every nuance with award-winning Poly audio technology
  • Powerful chipsets support next-generation features like NoiseBlock AI
  • Wi-Fi included; Bluetooth and two (2) USB ports (1 x Type A, 1 x Type C) to connect a headset and more
Data Sheet
Starting At$651.95
Buy Now

Overview

Dial up your productivity. Like a lot.

Attention, executives (or people who want to be):

Meet your phone of choice. The Poly CCX 600 starts with a 7-inch color touchscreen, killer Bluetooth® connectivity, integrated Wi-Fi, and Android 9-powered performance. Top it off with Poly’s famous audio quality. Order it with a Poly headset, go without and use your own, or take it full-modern with the “no handset” option. The CCX 600 is the phone for the big desk.

Command the conversation

The best audio quality available

Hear every nuance with prograde audio quality plus Poly HD voice and Poly Acoustic Clarity technologies. Destroy distracting background noise with Poly Acoustic Fence technology. And brace yourself for the speakerphone’s advanced noise blocking technology. You won’t believe it.

Always ready, always easy

Downtime? I don’t think so.

Expect 100% availability to make collaboration more fruitful than ever. And the gorgeous ergonomic design, large, intuitive user touchscreen interface don’t hurt either. Throw in a dedicated Teams button (Microsoft Teams edition) or Application button (Open SIP) and you’re ready for a serious productivity boost.

Take control. The choice is yours.

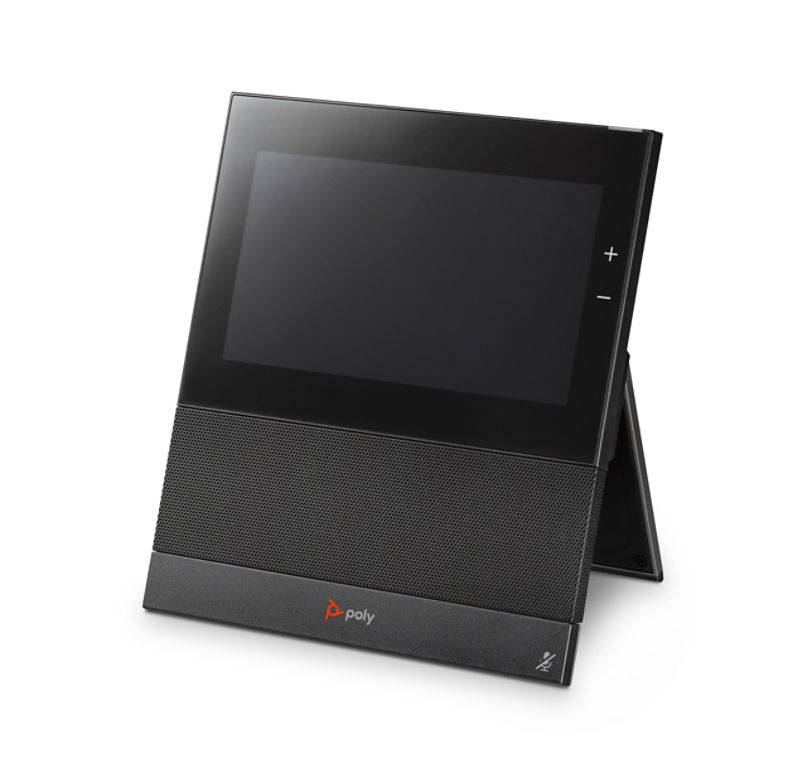

Handset or Headset Options at Your Fingertips

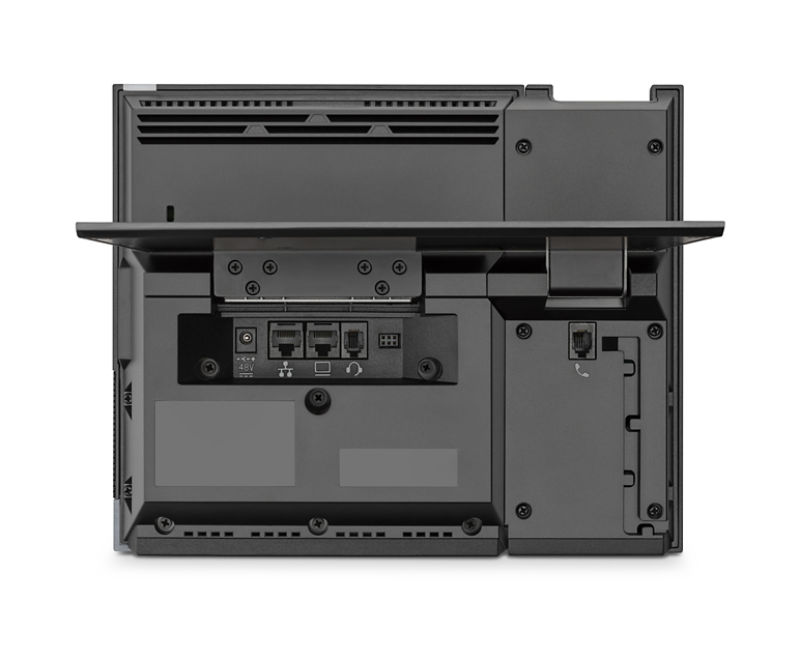

The CCX 600 phone’s integrated Bluetooth technology, 2 USB ports, RJ9, and EHS ports mean you can go hands-free with a mind-blowing selection of handset choices — including the Bluetooth-favorite Voyager Series. Never use a handset? You don’t need it — just order without one! Done.

We’ve got you covered

Better management. Better insights. Better support.

It’s an IT manager’s dream. Robust provisioning and management of telephony deployment and support make setup a snap.

Features

CCX600 Features

Specifications

  • User interface features
    • Gesture-based, multitouch-capable touchscreen
    • 7” color LCD (1024 x 600 pixel)
    • 16:9 aspect ratio Screensaver
    • On-screen virtual keyboard
    • Voicemail support
    • Adjustable base height
    • One USB type-A port (2.0 compliant) for media and storage applications
    • One USB Type-C port (2.0 compliant) for media and storage applications
    • Integrated Bluetooth 4.2
    • Integrated Wi-Fi
    • Unicode UTF-8 character support
    • Adjustable font size selection (regular, medium, large)
    • Normal and dark mode
    • Multilingual user interface including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish
    • HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
    • Acoustic Clarity technology providing full duplex conversations, acoustic echo cancellation, and background noise suppression
    • TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
    • Frequency response—100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
    • Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
    • Individual volume settings with visual feedback for each audio path
    • Voice activity detection
    • Comfort noise generation
    • DTMF tone generation (RFC 2833 and in-band)
    • Low-delay audio packet transmission
    • Adaptive jitter buffers
    • Packet loss concealment
    • OPUS support
    • Dedicated RJ-9 headset port
    • Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
    • Compliant with ADA Section 508 Subpart B 1194.23 (all)
    • Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
    • Compatible with commercially-available TTY adapter equipment
    • USB headset support
    • Bluetooth headset support
    • SIP protocol support
    • SDP
    • IETF SIP (RFC 3261 and companion RFCs)
    • Two-port gigabit Ethernet switch 10/100/1000 Base-TX across LAN and PC ports
    • Wi-Fi network connectivity–2.4-2.4835 GHz (802.11b, 802.11g, 802.11n HT-20)- 5.15-5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40)
    • Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
    • Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
    • Manual or dynamic host configuration protocol (DHCP) network setup
    • Time and date synchronization using SNTP
    • FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
    • Provisioning and call server redundancy supported *
    • QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
    • VLAN—CDP, DHCP VLAN discovery, LLDPMED for VLAN discovery - Network address translation support for static configuration and “keep-alive”
    • SIP signaling
    • RTCP and RTP support
    • Event logging
    • Syslog
    • Hardware diagnostics
    • Status and statistics reporting
    • IPv4 and IPv6
    • TCP
    • UDP
    • DNS-SRV
    • 802.1X authentication and EAPOL media encryption via SRTP
    • Transport layer security (TLS)
    • Encrypted configuration files
    • Digest authentication
    • Password login
    • Support for URL syntax with password for boot server address
    • HTTPS secure provisioning
    • Support for signed software executables
    • Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)
    • Built-in auto sensing IEEE 802.3at Power over Ethernet (Class 4) 25 W (Max)
    • External universal AC/DC adapter (optional), 48 VDC @ 0.52A (25 W)
    • Argentina ENACOM
    • Australia RCM
    • Brazil ANATEL
    • Canada ICES and NRTLC
    • China CCC and SRRC
    • EEA CE Mark
    • Eurasian Customs Union EAC
    • India WPC
    • Indonesia SDPPI
    • Israel MOC
    • Japan MIC & VCCI
    • Malaysia SIRIM
    • Mexico IFETEL and NYCE
    • NZ Telepermit
    • Saudi Arabia CITC
    • Singapore IMDA
    • South Africa ICASA
    • South Korea KC
    • Taiwan NCC
    • UAE TRA
    • USA FCC and NRTL
    • ** Planned compliance
    • USA–FCC Part 15.247 & FCC Part 15.407
    • Canada–RSS 247 Issue **
    • EU–ETSI EN 300 328 & ETSI EN 301 893
    • Japan–Article 2.1 Item 19-2 and 19-3
    • Australia–AS/NZ4268
    • ** Planned compliance
    • UL 62368-1
    • CAN/CSA C22.2 No. 62368-1-14
    • EN 62368-1
    • IEC 60950-1 and IEC 62368-1
    • AS/NZS 62368-1
    • FCC Part 15 Class B
    • ICES-003 Class B
    • EN 55032 Class B
    • EN 55024
    • EN 301 489-1 and EN 301 489-3 and EN 301 489-17
    • CISPR32 Class B
    • VCCI Class B
    • Temperature: 0 to 40 °C (+32 to 104 °F)
    • Relative humidity: 5% to 95%, noncondensing
    • -40 to +70 °C (-40 to +160 °F)
    • Console
    • Handset with handset cord (handset model only)
    • Network (LAN) cable—CAT-5E
    • Desk stand
    • Setup sheet
    • With handset: 26.3 cm x 21.7 cm x 6.0 cm WxHxD (10.4 in x 8.5 in x 2.4 in WxHxD)
    • Without handset: 19.0 cm x 21.7 cm x 6.0 cm WxHxD (7.5 in x 8.5 in x 2.4 in WxHxD)
    • 2200-49780-025 CCX 600 Business Media Phone. Open SIP. PoE. Ships without power supply.
    • 2200-49770-025 CCX 600 Business Media Phone without handset. Open SIP. PoE. Ships without power supply.
    • 2200-49780-019 CCX 600 Business Media Phone. Microsoft Teams/SFB. PoE. Ships without power supply.
    • 2200-49770-019 CCX 600 Business Media Phone without handset. Microsoft Teams/ SFB. PoE. Ships without power supply.
    • 2200-49743-001 CCX 600 wall mount Kit
    • 7200-49734-001 EagleEye Mini USB Camera with mounting kit for CCX 600
    • CCX 600 with handset unit weight: 1.97 kg (4.34 lbs)
    • CCX 600 without handset unit weight: 1.30 kg (2.87 lbs)
    • Five (5)
    • One (1) year
    • CCX 600, Media Phone, Open SIP, POE (P/N 2200-49780-025)
    • CCX 600, Media Phone, Open SIP, POE, No Handset (P/N 2200-49770-025)
