poly G7500 Modular video conferencing system
- Seamlessly connects to cameras, microphones, and other 3rd party components
- Built-in video apps for native full-featured experiences
- Includes Poly NoiseBlockAI and Acoustic Fence technologies
G7500
Overview
Create your ideal space
Customize your conference rooms with confidence
If you want more control over your meeting spaces, the Poly G7500 is ready. This modular video conferencing system makes it easy to outfit conference rooms to meet your organization’s unique needs. Loaded with flexible features, the G7500 leverages your design to power your meetings and wow your teams.
Get the most from your meeting spaces
A flexible yet easy to deploy solution for modular meeting spaces
Poly G7500 delivers an easily accessible modular room solution by seamlessly connecting to cameras, microphones, and other 3rd party components. Voice clarity, in any room type, is ensured as Poly G7500 supports industry-leading audio-conferencing processors like QSC, Shure, and Biamp over USB. Plus, it includes a robust set of REST APIs so you can easily integrate with controllers and other room components.
Do meetings your way
Works with nearly every cloud video platform
G7500 video conferencing system features native support for leading cloud video services, including Zoom and Microsoft Teams, without the need for a PC. Plus, it has the flexibility to connect to any standards-based video solution using H.323 and SIP protocols or use the room’s video system while launching a meeting from your personal laptop.
Rich audio and video
As lifelike as conference room video gets
Poly’s smart audio filtering technologies are included in G7500 and create more focused meetings by preventing distracting noises and outside conversations from interrupting your calls. Additionally, when pairing G7500 with Poly Studio E70 the dual cameras intelligently work together using Poly DirectorAI smart camera technology to provide the best large room video experience. Participants across hybrid meetings can now hear and be heard clearly while having an equal seat at the table.
Poly provides a non-radio version of Video and Voice products for use in security sensitive environments such as Federal, military and banking institutions.
We work everywhere that you do
Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.
Poly works seamlessly with whichever cloud video service you choose.
Easy digital signage in your video meeting spaces
Poly video conferencing solutions can now deliver digital signage content from Appspace or Raydiant between meetings. Using Poly Lens cloud management makes deployment a breeze.
G7500
Specifications
-
Package includes
- G7500 codec

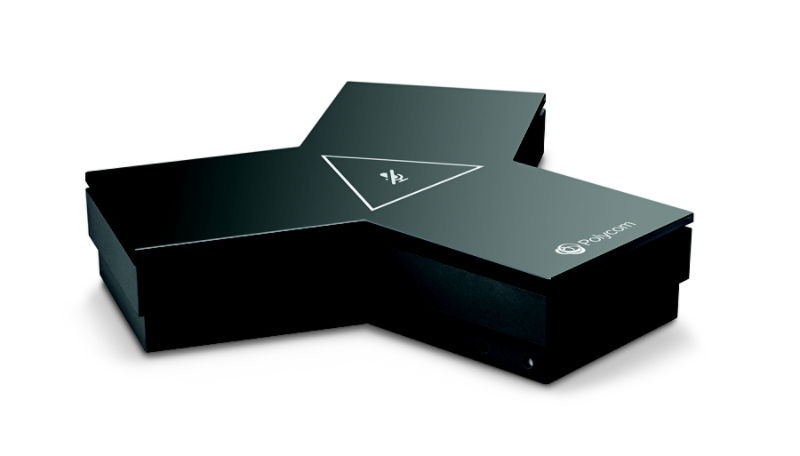

- Poly IP Microphone

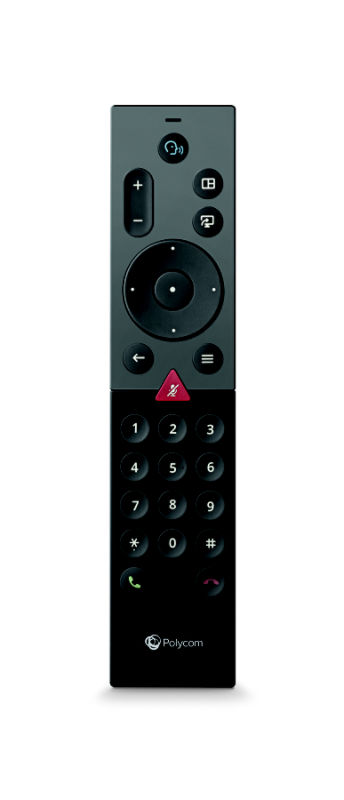

- Bluetooth® remote control
- Cable bundle
- Bundles available with cameras and touch controller
-
Video standards and protocols
- H.264 AVC, H.264 High Profile, H.265
-

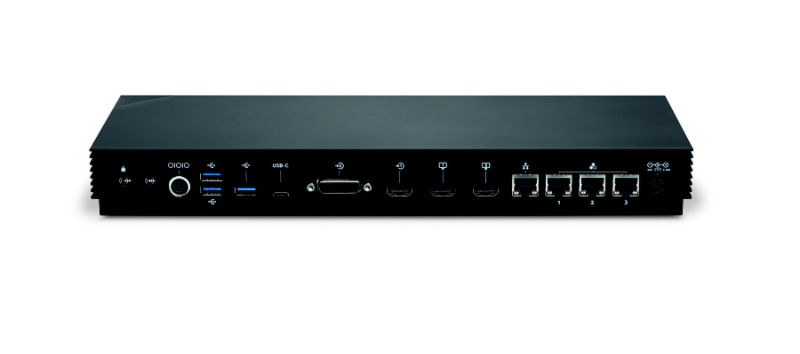

Video input
- 1x HDCI
- 1x HDMI
- 3x USB
- Camera switching via touch interface
-
Video out
- 2x HDMI
- Touch display compatible
-
People video resolution
- 4K, 30 fps (TX and RX) from 2048 Kbps
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288)
- From 64 kbps
- QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
-
Content video resolution
-
Input
- UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
-
Output
- UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
-
Content frame rate
- 5–60 fps (up to 4K resolution at 15 fps in call)
-
-
Content sharing
- Poly Content App support
- Apple AirPlay
- Miracast
- 1x HDMI input
-
Audio input
- Up to three 1x IP microphone arrays (20 ft pickup range each)
- Up to 4x Clink2 Microphones or SoundStructure (using Poly Microphone IP Adapter)
- 1x HDMI
- 1x 3.5 mm stereo line-in
- USB support for Shure, Extron and QSC audio DSPs
-
Microphones
- Up to three IP microphone arrays (up to 20 ft pickup range each)
- Up to 4x Clink2 microphones or Soundstructure (using Poly Microphone IP Adapter)
-
Audio output
- 1x HDMI
- 1x 3.5 mm stereo line-out
-
Other interfaces
- 3x USB 3.0
- 1x USB-C*
- 1x RS-232, 8-pin mini-DIN
- Bluetooth 5.0**
- WiFi 802.11a/b/g/n/ac (MIMO) Multichannel Concurrency2
-
Audio standards and protocols
- 22 kHz bandwidth with Polycom Siren 22 technology
- 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
- 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
-
Network
- IPv4
- IPv6
- 1x 10/100/1G Ethernet
- Auto-MDIX
- 3x 10/100/1G LLN supporting POE+/ PSE
- H.323 and/or SIP up to 6 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Dynamic bandwidth allocation
- Reconfigurable MTU size
- RS232 with REST and CLI API support
- Web Proxy support—Basic, Digest and NTLM
-
Security
-
Media encryption (H.323, SIP)
- AES-128, AES-256
- H.235.6 support
- Authenticated access to admin menus, web interface and APIs
-
PKI/Certificate Management:
- TLS 1.2, 1.1, 1.0
- Self-signed and CA-signed certificate support
- CRL and OCSP-based certificate revocation checking
- Local account password policy configuration
- Security profiles
- Local account and login port lockout
- Secure defaults
- Remote logging with support for TLS
- Active directory external authentication
-
-
Options
- Poly TC8
- Poly IP Table Microphone
- Poly Microphone IP Adapter
- EagleEye IV
- EagleEye Producer
- Poly Studio E70
-
Interoperability
- Support for Zoom Rooms, Microsoft Teams, StarLeaf, GoToRoom, RingCentral and BlueJeans
- All cloud service providers through Poly Video App
- USB Device
-
Electrical
- Auto sensing power supply
-
Typical operating voltage/power
- 100 to 240 VAC, 50/60 Hz
- 54V DC input, 3.34A, 180W
- Typical BTU/h: 65
-
Environmental specification
-
Operating temperature
- 0 to 40 °C (32 - 104 °F)
-
Operating humidity
- 15 to 80%
-
Non-operating temperature
- -40 to 70 °C (-40 to 158 °F)
-
Non-operating humidity (non-condensing)
- 5 to 95%
-
Maximum altitude
- 10,000 ft
-
-
Physical characteristics
-
G7500 base box
- 13.75” L x 1.5” H x 5.5” D in (34.92 x 3.81x 13.97 cm)
- 2.1 lbs (.95 Kg)
-
-
Warranty
- One-year return to factory parts and labor
-
*
- * For future use
- ** TAA, JITC and no radio versions available
- Certain features may only be available with certain apps or in Poly Video mode
-
Models
- G7500, with EagleEye IV 4x (P/N 7200-85740-001)
- G7500, with EagleEye IV 12x (P/N 7200-85760-001)
- G7500, Base unit (P/N 7200-85860-001)
- G7500 with Studio E70 (P/N 7200-87310-001)
