  • See everyone on the call like they’re in the room
  • Let people sit where they want and stay in frame
  • Hear every word for more productive meetings
  • Get up and running fast with easy installation
Data Sheet

Overview

Turn Small Spaces into Powerful Places

Unlock the possibilities of a small meeting room with powerful video conferencing capabilities. The EagleEye Cube is the perfect way to add top-quality visuals to your superior Poly sound experience. Pair it with the G7500, Trio or Group Series systems to bring remote meetings to life. With automatic group framing, 5x zoom and legendary audio performance, your teams can connect virtually like never before.

Poly Pixel Background
Benefits
  • See Everyone Clearly
  • Effortless Camera Framing
  • Hear Every Word
  • Get Up and Running Fast

Get a crisp image of every person in the meeting. The HD camera with 4k sensor gives you better up-close views with 5x zoom.

Let people sit where they want and still be seen and heard thanks to automatic group framing, speaker tracking and a full 120-degree view field.

With two built-in microphones for crystal-clear pickup, no one in the room will miss a word. Sound clarity equals better communication.

Flexible, easy installation and centralized management make this camera a breeze to set up and control. Your IT team will thank you.

We work everywhere that you do

Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.

Poly works seamlessly with whichever cloud video service you choose

Features

EagleEye Cube Features

Specifications

  • Eagleeye cube features

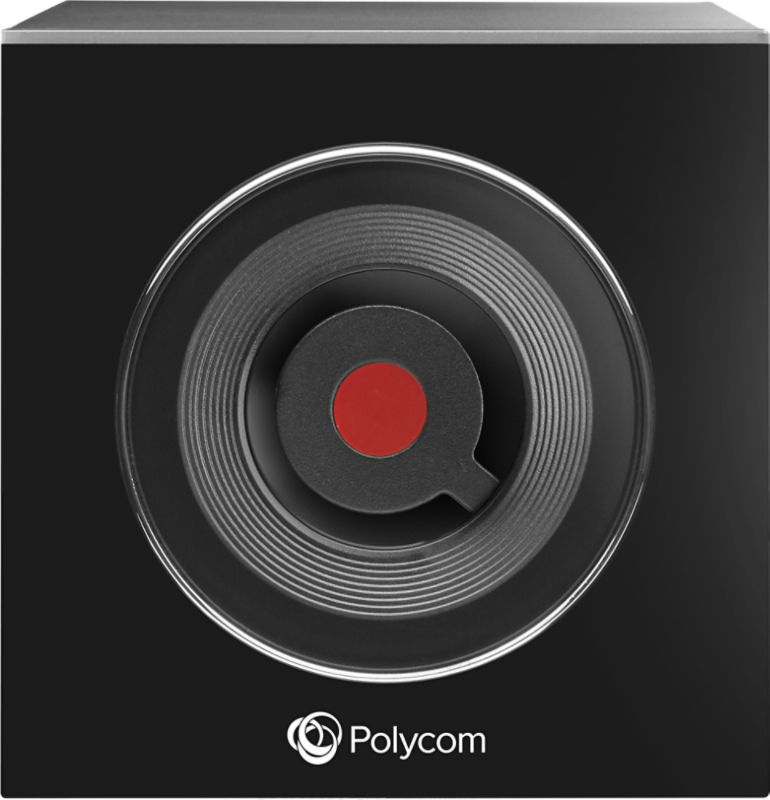

    • Integrated Privacy shutter
    • 4K Sensor
    • 1080p60 (HDCI) / 4K30 (USB)

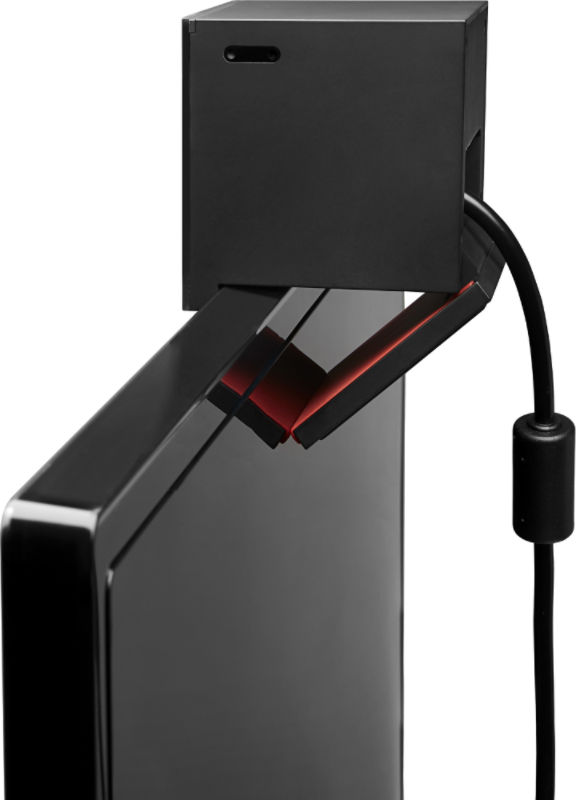

    • Mechanically adjustable tilt
    • Anti-flicker compensation
    • Muti-color LED
    • 1 /2.5’’ CMOS
    • f/2.0 aperture (HDCI)
    • f/2.8 aperture (USB)
    • 4K sensor
    • Min Illumination 50 lux
    • Horizontal FOV - 110° / 120° DFOV (HDCI) 111° / 121° (USB)
    • Vertical FOV - 66° (HDCI) 75° (USB)
    • Automatic exposure and white balance
    • Lens Focal Length - f=3mm (HDCI), 2.29mm (USB)
    • Focus - Fixed
    • 5x electronic zoom (2.0x lossless)
    • Vertical tilt – adjustable via mount
    • 2 built-in microphones
    • USB 3.0
    • HDCI, 60 pin (incl: power, Comm, IR, HDMI, audio)
    • G7500 2.1 or above (USB)
    • Visual+ 5.9.0.1 and Companion App 1.2.0 (USB)
    • Trio™ 8500* with VisualPro 6.2.1 or above (HDCI)
    • Trio™ 8800* with VisualPro 6.2.1 or above (HDCI)
    • RealPresence Group Series with 6.2.1 or above (HDCI)
    • The EagleEye Cube HDCI camera receives firmware updates through software updates through connected hardware. USB version updates through Companion App, Visual+ or Windows Software Update Utility.
    • Frame Speaker (USB only), Frame Group or of
    • Framing size: Tight, Medium, Wide
    • Framing speed: Fast, Normal, Slow
    • 79.75 x 81.08 x 80.5 mm
    • 4 Watts, 0.34A, DC12V (HDCI)
    • 0.9A, 5V (USB)
    • FCC pt. 15 (USB & HDCI)
    • ETSI EN 550332 (USB & HDCI)
    • ETSI EN 55024 (USB & HDCI)
    • ETSI EN61000-3-2 (USB)
    • ETSI EN61000-3-3 (USB)
    • ETSI EN61000-4-2 (USB & HDCI)
    • ETI EN61000-4-3 (USB & HDCI)
    • EN60950 / EN 62368
    • Korea KCC (USB & HDCI)
    • Russia EAC (USB & HDCI)
    • NRTL Safety
    • CB Safety
    • Participant count
    • Skin enhancement
    • Wide dynamic range
    • Lens distortion correction (HDCI)
    • Operating: 0°C to 45°
    • Non-operating: -40°C to 70°C
    • Operating: 15%-80%
    • Non-operating: 5% to 95% (non-condensing)
    • Operating: -50 feet to 10K feet
    • Non-operating: -50 feet to 35K feet
    • China
