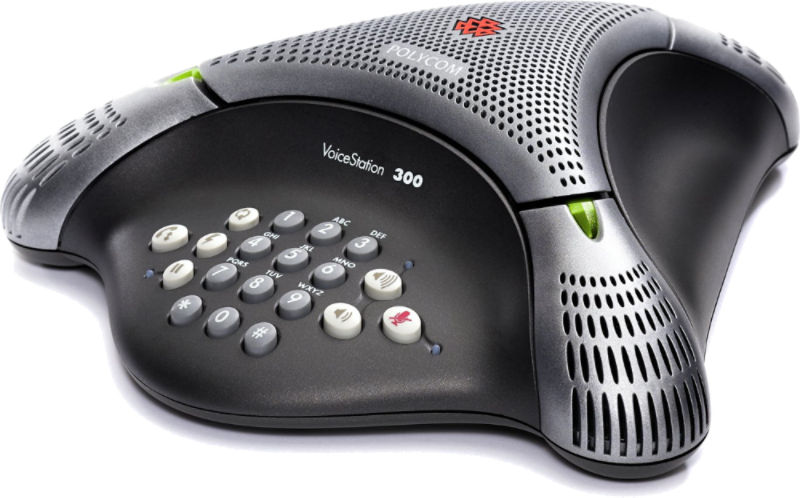

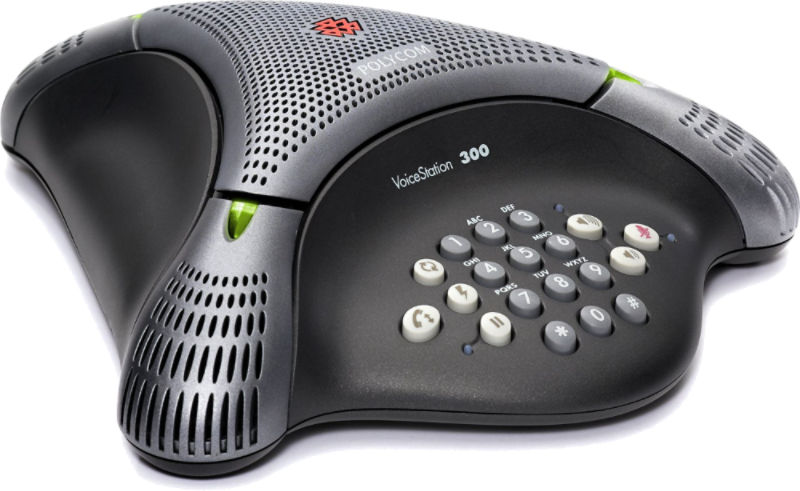

VoiceStation 300 Analog conference phone for small spaces and offices

Conference areas

• VoiceStation® 300 is ideal for basic conferencing in offices and small conference rooms, accommodating 4 or fewer meeting participants

Features and functions

• VoiceStation 300 is easy-to-use, with its universal keypad and intuitive functions

Console size (L x W x H)

• 9.5 x 9.25 x 3.0 in (24.2 x 23.5 x 7.6 cm)

Weight

• 1.25 lbs (0.57 kg)

Power

• 110V 60Hz AC/220V 50Hz AC (depending on country)

Network interface

• Analogue PBX or public switched telephone

Keypad

• 12-key telephone keypad including:
  • On-hook/off-hook
  • Flash, redial, mute, hold
  • Volume up, volume down
• LEDs
• Off-hook, active call, hold, mute

Console loudspeaker

• Frequency response—300 to 3300 Hz
• Volume—adjustable to 86 dBA SPL (peak) volume at 0.5 m

Console microphone

• 3 x cardioid microphones 300–3500 Hz

Audio

• Acoustic Clarity full duplex (IEEE 1329 Type 1)
• Up to 7 ft. microphone pickup range
• Gated microphones with intelligent microphone mixing
• Dynamic Noise Reduction

Regulatory compliance

• NA UL/C-UL
• FCC part 68
• FCC part 15 class B
• Canadian ICES-003
• CE mark (R and TTE directive)
• VCCI class B (Japan)

Environmental requirements

• Operating temperature: 40–104ºF (5–40ºC) operating
• Relative humidity: 20–85% (non-condensing)
• Storage Temperature: -22–131ºF (-30–55ºC)

Recommended room conditions

• Room Size: less than 225 sq ft or 15 x 15 ft (less than 25 sq m or 5 x 5 m)
• Reverberation time: <0.4 seconds
• Noise level: <48 dBA

VoiceStation 300 ships with

• Telephone console unit
• Power module
• 21 ft (6.4 m) cord to console
• 7 ft (2.1 m) telco cable to RJ-11 telephone jack
• User Guide

Warranty

• 12 months

Models
