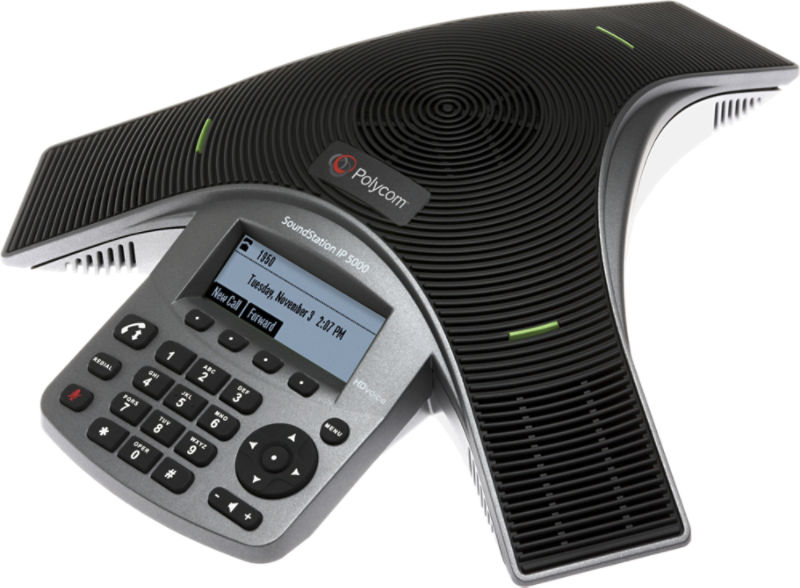

SoundStation IP 5000 SIP conference phone for small conference rooms and executive offices.

Life-like call clarity
Simple to use
Robust SIP platform interoperability

Overview

Big sound in a small space

The SoundStation IP 5000 boosts productivity and reduces listener fatigue by turning ordinary conference calls into crystal-clear interactive conversations. It delivers high-fidelity audio capturing both the deeper lows and higher frequencies of the human voice for conference calls that sound as natural as being there.

Benefits

Life-like call clarity
Simple to use
Robust SIP platform interoperability

HD Voice delivers high-fidelity audio up to 7kHz, for conference calls that sound as natural as being there.

Classic 12-key keypad and clear prompts on backlit LED display makes starting and managing conference calls easy.

Compatible with a broad array of SIP call platforms to maximize voice quality and feature availability while simplifying management and administration.

Works everywhere you do (and beyond)

Poly conference phones work on more than 60+ communication platforms — most with a native user experience. Choose the one that works for you!

Poly is certified (when offered) with all major communication platforms.

Features

SoundStation IP 5000 Features

Specifications

Power
- IEEE 802.3af Power over Ethernet (built in)
- Optional external universal AC power supply kit: 100-240V, 0.4A, 48V/19W
Display
- Size (pixels): 248 x 68 (W x H)
- White LED backlight with custom intensity control
Keypad
- Standard 12-key keypad
- Context-dependent soft keys: 4
- On-hook/Off-hook, redial, mute, volume up/down
- 5-way navigation
- Menu
Audio features
- Loudspeaker
  - Frequency: 250 – 7,000 HZ
  - Volume: Adjustable to peak volume 84 dB at 1/2 meter distance
- Voice activity detection
- Comfort noise fill
- DTMF tone generation / DTMF event RTP payload
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
- Acoustic echo cancellation
- Background noise suppression
- Supported Codecs
  - G.711 (A-law and μ-law)
  - G.729a (Annex A, B)
  - G.722
  - iLBC
Call handling features
- Shared call / bridged line appearance
- Busy Lamp Field (BLF)
- Distinctive incoming call treatment / call waiting
- Call timer
- Call transfer, hold, divert (forward), pickup
- Called, calling, connected party information
- Advanced Local three-way conferencing (conference, join, split, hold, resume)
- One-touch speed dial, redial
- Call waiting
- Remote missed call notification
- Automatic off-hook call placement
- Do not disturb function
Other features
- Local feature-rich GUI
- Time and date display
- Corporate Directory Access (search, dial, save to local directory)
- Convenient volume adjustment keys
- User-configurable contact directory and call history (missed, placed, and received)
- Customizable call progress tones
- Wav file support for call progress tones
- Unicode UTF-8 character support. Multilingual user interface encompassing Simplified Chinese, Danish, Dutch, English (Canada / US / UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish
Network and provisioning
- Ethernet 10/100 Base-T
- IP Address Configuration: DHCP and Static IP
- Time synchronization with SNTP server
- FTP / TFTP / HTTP / HTTPS serverbased central provisioning for mass deployments. Provisioning server redundancy supported.
- Web portal for individual unit configuration
- QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
- Network Address Translation (NAT) support – static
- RTCP support (RFC 1889)
- Event logging
- Local dial plan
- Hardware diagnostics
- Status and statistics
- User selectable ringer tones
- Field upgradeable
Security
- Transport Layer Security (TLS)
- Encrypted configuration files
- Digest authentication
- Password login
- Support for URL syntax with password for boot server
- HTTPS secure provisioning
- Support for signed software executables
Safety
- CE Mark
- EN60950-1
- IEC60950-1
- UL60950-1
- CAN/CSA C22.2 No.60950-1-03
- AS/NZS60950-1
- RoHS Compliant
EMC
- FCC Part 15 (CFR 47) Class B
- ICES-003 Class B
- EN55022 Class B
- CISPR22 Class B
- AS/NZS CISPR22 Class B
- VCCI Class B
- EN22024
Protocol support
- IETF SIP (RFC 3261 and companion RFCs)
Product ships with
- Conference Phone Console
- 25 foot Ethernet cable
- Quick Start Guide
Optional AC power kit ships with
- Universal Power Supply
- 7 foot region-specific power cord
- Power Insertion Cable
Environmental conditions
- Operating temperature: 41 – 104 degrees F (5 – 40 degrees C)
- Relative humidity: 20% – 85% (noncondensing)
- Storage temperature: -22 – 131 degrees F (-30 – 55 degrees C)
Warranty
- 1 year
Country of Origin
- China
Phone dimensions
- 11.4 x 10.6 x 2.6 in ( 28.5 x 26.5x 6.5 cm) (L x W x H)
- Phone console weight
- 1.14 lb (0.52 kg)
- Box dimensions
- 14.88 x 11.76 x 3.8 in (37.2 x 29.4 x 9.5 cm) (L x W x H)
Box weight
- 2.99 lb (1.36 kg)
